Door Cope & Stick 1-1/16" - 2

Door Cope & Stick 1-1/16" - 2

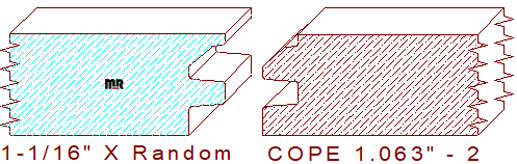

Door cope and stick are profile designs used in the construction of many styles of interior and exterior doors; this particular pattern was created for use on cabinet doors with a thickness of 1-1/16", and widths are adjusted to any desired size within the parameters of the molder or shaper used to mill the pattern. The profile comprises a male and female tongue and groove with a chamfered edge. There is a total of .004" void in the joint area that will assure a nice snug fit, and it will allow for any excess glue to escape during the assembly process.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.063
Depth of Cut: 0.375
Left Cutter Head
Thickness: 1.063
Depth of Cut: 0.373
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.28
$137.28
Not Needed
Not Needed
Total:
$274.55
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.53
$144.53
Not Needed
Not Needed
Total:
$289.06
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$155.41
$155.41
Not Needed
Not Needed
Total:
$310.81
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
