Door Cope & Stick 1-3/8" - 1

Door Cope & Stick 1-3/8" - 1

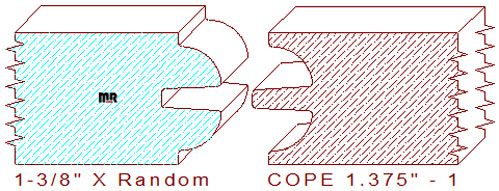

This lovely door cope & stick 1-3/8" - 1 measure 1.375" thickness. The width is milled to any desired size within the parameters of the machinery used to mill the pattern. The profile is comprised of a 5/8" wide by 1/4" tall tongue and groove with .006" of void in the joint area to allow extra glue to escape during assembly. The rest of the pattern consists of a 13/32" quarter circle with a 9/64" vertical line at the top and bottom face side. Our high-precision moulding knives include the required draft angles to maintain the ability to sharpen the blades properly without modifying the detail while simultaneously prolonging the milling time between sharpening.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.375
Depth of Cut: 0.625
Left Cutter Head
Thickness: 1.375
Depth of Cut: 0.625
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$153.50
$153.50
Not Needed
Not Needed
Total:
$307.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$162.00
$162.00
Not Needed
Not Needed
Total:
$324.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$174.75
$174.75
Not Needed
Not Needed
Total:
$349.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
