Search Our Moulding Knives Catalog by Category and Size

*Enter desired search sizes - use whole numbers & decimals

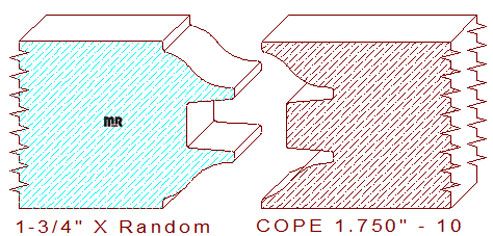

Door Cope & Stick Molding 1-3/4" - 10

Door Cope & Stick Molding 1-3/4" - 10

Door Cope & Stick Molding 1-3/4" - 10

These beautiful door cope and stick moulding knives are capable of milling this ogee design on a door stile or rail measuring 1-3/4" thickness, there is .006" slop built into the joint area to allow glue to escape from during assembly. The tongue and groove portion (for the panel) dimensions are 1/2" wide by 1/2" deep, the ogee portion depth of cut is 3/4". Generally the stiles and rail are milled on a moulder, wider pieces that exceed the moulder's width limitations are more often milled on a shaper.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
