Door Cope & Stick 1-3/4" - 15

Door Cope & Stick 1-3/4" - 15

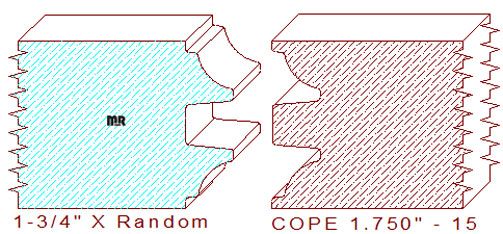

This 1-3/4" Door Cope & Stick - 15 measures 1-3/4" thickness, and widths are adjusted to any size within the parameters of the machinery used to mill the pattern. The profile is comprised of a 1/2" wide by 1/2" deep tongue and groove with a 7/16" radius cavetto that is flanked by 1/8" wide fillets on each side, there is .006" of slop in the joint area to assure a snug fit when assembled.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
