Door Cope & Stick Molding 1-3/4" - 29

Door Cope & Stick Molding 1-3/4" - 29

Door Cope & Stick Molding 1-3/4" - 29

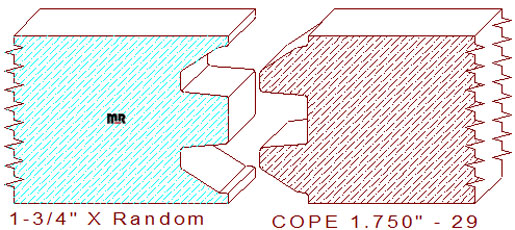

This interior door cope & stick moulding 1-3/4" - 29 measures 1.750" thickness, the width can be machined to any desired size within the parameters of the molder or shaper used to mill the pattern. The symmetrical profile is comprised of a 1/2" wide by 1/2" deep tongue and groove, joined to a 7/32" tall vertical line with a beveled line that transitions into a small notch at the top and bottom of the design. We also have this same profile with a larger 3/4" wide tongue and groove for a larger sized panel, door cope 1-3/4" - 41. Our high precision templates and knives include the required draft angles to maintain the ability to sharpen the blades properly without modifying the detail, while simultaneously prolonging the milling time between sharpening.

Learn how to become more efficient while searching over 15,000 mouldings in our state of the art profile catalog. Watch the short video on the first page to find design ideas for your next woodworking project, we're sure you will locate the perfect embellished pattern to enhance the architectural style of your beautiful home or office.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Thickness = 1.750" / Depth of Cut = .500" (male blades) & .504" (female cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
