Door Cope & Stick Moulding 1-3/4" - 39

Door Cope & Stick Moulding 1-3/4" - 39

Door Cope & Stick Moulding 1-3/4" - 39

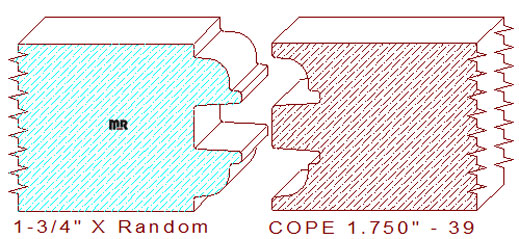

This door cope and stick moulding 1-3/4" - 39 measures 1.750" thickness, widths are manufactured to any desired size during the milling process. The symmetrical interior door profile consists of a double ovolo geometrical shape, with an attached tongue and groove that measures 1/2" wide by 1/2" tall with .006" of void in the joint area that will allow glue to escape from during assembly. We have the same profile available for a 1/4" thickness panel for your review and consideration, door cope 1.750" - 4.

Our high precision moulding knives include the required draft angles to maintain the ability to sharpen the blades properly without modifying the detail, while simultaneously prolonging the milling time between sharpening. We offer thousands of innovative moulding profiles designed to save valuable time and money in your demanding milling production schedule, try a few of our beautiful designs today.

For knife quoting purposes use the calculator below, we have added only the important measurements. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Thickness = 1.750" / Depth of Cut = .500" (right blades male profile) & .500" (right knives female profile).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
