Door Cope & Stick Moulding 1-3/4" - 7

Door Cope & Stick Moulding 1-3/4" - 7

Door Cope & Stick Moulding 1-3/4" - 7

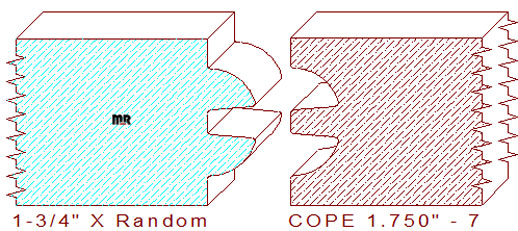

This interior door cope & stick moulding 1-3/4" - 7 measures 1.750" thickness, widths can be machined to any desired size within the parameter used to mill the pattern. The symmetrical profile is comprised of a 5/16" tall vertical lines on top and bottom connected to a 1/2" radius quarter round circle, the tongue and groove portion measures 1/4" tall by 1/2" wide. Our high precision molding knives include the required draft angles to maintain the ability to sharpen the blades properly without modifying the detail, while simultaneously prolonging the milling time between sharpening.

Architects, interior designers, lumber mills, and manufacturers have been utilizing our vast variety of creative designs for years, we trust you will find that special profile to enhance the architectural style of your client's home. If you have any questions or concerns about knife grinding procedures for any of our profiles, please contact us, we would be honored to assist you.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Thickness = 1.750" / Depth of Cut = .500" (male blades) & .500" (female cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
