Door Cope & Stick Moulding 1-15/16"

Door Cope & Stick Moulding 1-15/16"

Door Cope & Stick Moulding 1-15/16"

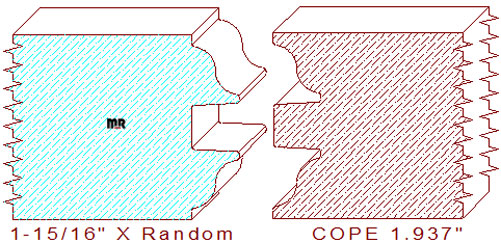

This exterior door cope & stick moulding 1-15/16" measures 1.937" thickness, necessitating the use of ten quarter lumber for milling, the width can me machined to any desired size within the parameters of the shaper or moulder used to cut the pattern. The stylish symmetrical profile is composed of a 7/16" wide by 1/2" deep tongue and groove joint with a built in .007" void, (this is to allow for excess glue to escape during assembly), connected to a two ogee's made up from two tangent 1/4" radius semicircular arcs with a 1/8" vertical edge on both the top and bottom of the design.

Our professionally designed acrylic templates and knives include the required draft angles and blend areas to maintain the ability to sharpen the blades properly without modifying the detail, while simultaneously prolonging the milling time between sharpening. Whether you own an industrial shaper or moulder such as a Weinig, Wadkin, Leadermac, SCM, Diehl, Northtech or Homag molder, our precision cutters will mill flawlessly on them all.

For moulding knife quoting purposes click to open the calculator below, we supplied only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Thickness = 1.937" / Depth of Cut = .496" (male blades) & .500" (female cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
