Door Cope & Stick 3/4" - 10

Door Cope & Stick 3/4" - 10

Door Cope & Stick 3/4" - 10

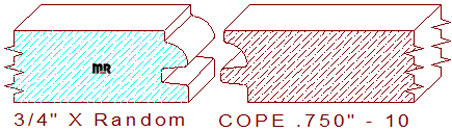

This cabinet door cope & stick 3/4" - 10 measures .750" thickness and width can be manufactured to any desired size within the parameters of the shaper or molder used to mill the pattern. The functional profile is comprised of a 3/16" tall by 9/32" deep tongue and groove attached to a 1/4" quarter circle with a 1/8" tall vertical line on top and a 3/16" vertical line on the bottom. There is a .006" void in the t & g joint area to allow excess glue to escape from the joint during assembly.

Our high-precision templates and knives include the required draft angles to maintain the ability to sharpen the blades properly without modifying the detail while simultaneously prolonging the milling time between sharpening. Whether you own a Weinig, Wadkin, Leadermac, SCM, Diehl, Kentwood, Shop Fox or Williams & Hussey moulder, our cutters will mill flawlessly on them all.

For knife quoting purposes, click to open the calculator below, we have added only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation of using the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart and place it on the machinery to help operators save time and increase accuracy during machine setup.

Thickness = .750" / Depth of Cut = .277" (male blades) & .282" (female cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
