Door Cope & Stick Moulding 3/4" - 6

Door Cope & Stick Moulding 3/4" - 6

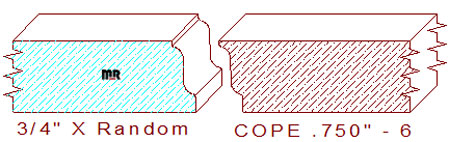

This cabinet door cope & stick moulding 3/4" - 6 measures .750" thickness, the width can be milled to any desired size within the parameters of the shaper used to cut the pattern. The basic profile is composed of a 3/16" tall vertical line at the bottom, connected to a bidirectional congee made up of 1/8" semicircles with a 1/16" vertical line at the top of the pattern.

We're delighted you found a functional profile that interest you, please consider all the other services we offer for your precision woodworking company. Mirror Reflections offers hundreds of tooling supplies for your industrial moulder and knife grinding room. If you're new to the industry read some of our informational articles, they will help you get started with all the basics. One thing we have in common is our passion for excellence and our quest to be paramount craftsman for all our clients.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Thickness = .750" / Depth of Cut = .250" (male blades) & .250" (female cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
