This professionally drafted cad dxf file contains two high precision template designs to create cutters for this beautiful cabinet door coping detail. From just an idea in one's mind to reality in their home, our custom profiles reflect the creative style of your imagination, let us assist you in complementing your architectural decor with any of our attractive molding patterns.
For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

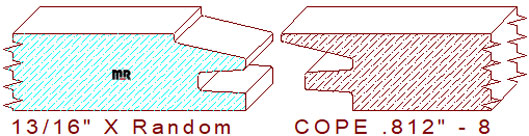

Thickness = .812" / Depth of Cut = .750" (male blades) & .750" (female cutters).
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
