Door Cope & Stick Moulding 15/16" - 3

Door Cope & Stick Moulding 15/16" - 3

Door Cope & Stick Moulding 15/16" - 3

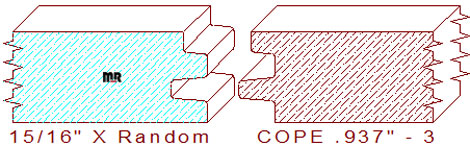

This cabinet door cope & stick moulding 15/16" - 3 measures .937" thickness, necessitating the use of five quarter lumber for milling on an industrial shaper or moulder, the width can be milled to any desired size within the parameters of the machinery used to cut the pattern. The profile is composed of a 1/4" and 3/8" wide by 1/4" tall tongue and groove design with .005" void in the joint area for excess glue to escape from during fabrication of the male and female parts.

Our professionally designed acrylic templates and knives include the required draft angles to maintain the ability to sharpen the blades properly without modifying the detail, while simultaneously prolonging the milling time between sharpening. Whether you own an industrial shaper or moulder such as a Weinig, Wadkin, Leadermac, SCM, Diehl, Northtech or Homag molder, our precision cutters will mill flawlessly on them all.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Thickness = .937" / Depth of Cut = .375" (male blades) & .378" (female cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
