Door Jamb 3-11/16"
Door Jamb 3-11/16"

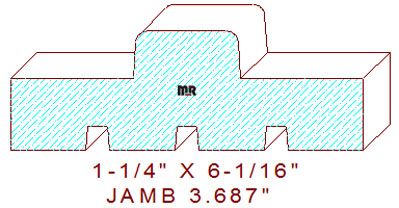

This 3-11/16" door jamb measures 3.687" wide by 1.250" thick. It is a T-style jamb profile, with the center 1-1/8" higher by 1/2" than the rest of the profile at 3/4" thickness. Both edges of the elevated center portion are radiused by 1/8".
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
