Door Jamb 5" - 1

Door Jamb 5" - 1

Door Jamb 5" - 1

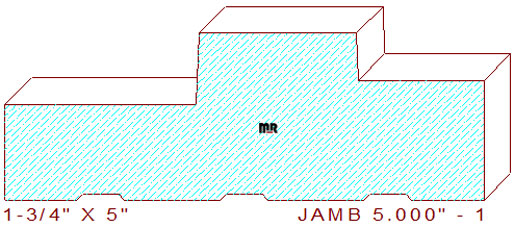

This 5" - 1 double rabbeted door jamb measures 5.000" wide by 1.750" thickness. The functional profile is comprised of a 2" wide by 3/4" deep rabbet on one side, attached to an off center 1-11/16" wide raised fillet with a 1-5/16" wide by 1/2" deep rabbet on the opposite side of the design. Our high precision templates and knives include the required draft angles to maintain the ability to sharpen the blades properly without modifying the detail, while simultaneously prolonging the milling time between sharpenings. Browse our backout category for a suitable relief cut for this detail; we have a few options to select from.

Whether you have a Weinig R1000 profile grinder or a Isel CNC template maker, our innovative profiles are intended to save valuable time and money in your demanding production schedule.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.000
Depth of Cut: 0.750
Bottom Cutter Head
Width: 5.000
Depth of Cut: 0.093

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$365.00
$342.00
Total:
$707.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$388.00
$365.00
Total:
$753.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$411.00
$388.00
Total:
$799.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
