Door Jamb 6-1/16"
Door Jamb 6-1/16"

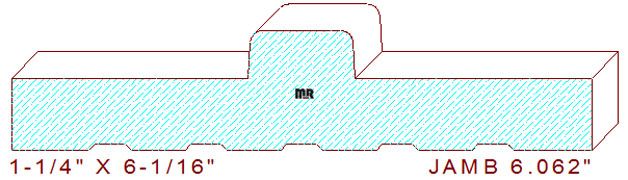

This double rabbeted door jamb molding 6-1/16" measures 6.062" wide by 1.250" thickness. This T style jamb, where the center 1-1/8" is higher by 1/2" than the rest of the profile, which is at a 3/4" thickness, both edges of the center portion are radiused by 1/8".
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
