Door Jamb Moulding 6-1/8"

Door Jamb Moulding 6-1/8"

Door Jamb Moulding 6-1/8"

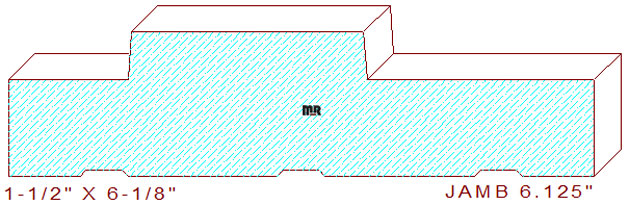

This double rabbeted door jamb 6-1/8" measures 6.125" wide by 1.500" thickness. The profile is comprised of a 2-1/2" wide by 1/2" tall raised fillet attached to a 1-1/4" wide rabbeted area on one side and a 2-3/8" wide rabbet on the opposite side of the jamb. Browse our backout category for a suitable relief cut for this pattern, we have a few options to select from. You may have to change the backout search parameters by a quarter of an inch to find a size cutter to mill the bottom of this pattern.

Our profile designs include the required draft angles to maintain the ability to sharpen the knives properly without modifying the detail while prolonging the milling time between sharpening whether you own a Weinig, Wadkin, Leadermac, SCM, Diehl, or Kentwood molder our patterns will mill flawlessly on them all.

For knife quoting purposes use the calculator below; we have added only the important dimensions. A brief detailed explanation on how to use the calculator is located here.

Width = 6.125" / Depth of Cut = .500" (top knives).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
