Door Jamb Moulding 6-9/16" - 3

Door Jamb Moulding 6-9/16" - 3

Door Jamb Moulding 6-9/16" - 3

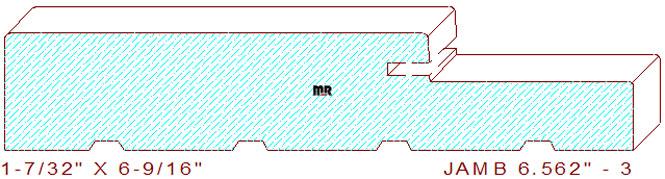

This exterior door jamb moulding 6-9/16" - 3 measures 6.562" wide by 1.219" thickness enabling the pattern to be milled from six quarter lumber. The functional profile is comprised of a 2-1/8" wide by 1/2" deep rabbet with 1/16" eased edges on the top and sides of the detail. The saw kerf for the weather stripping is generally milled on either a molder universal spindle or on a table saw after the milling process. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

This cad generated dxf file contains three skillfully drafted template designs for creating knives for this useful door jamb pattern. All our innovative profiles have a proven unbroken cnc (computer numerical control) tool path expediting the production process.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 6.562" / Depth of Cut = .718" (top knives) & .093" (bottom cutters.)

Thickness = 1.218" / Depth of Cut = .218" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
