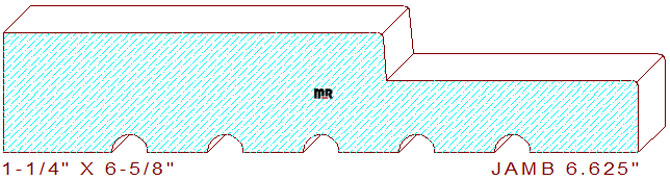

This professionally drafted cad dxf file contains two high precision template designs to create cutters for this useful door jamb detail, one for milling the entire width and the other for cutting just the profile portion of the design. From just an idea in one's mind to reality in their home, our custom profiles reflect the creative style of your imagination, let us help you design a beautiful pattern today.
For knife quoting purposes click to open the calculator below, we have added only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.
Width = 6.625" / Depth of Cut = .719" (top knives) & .187" (bottom cutters).
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
