Door Jamb Moulding 7-1/4"

Door Jamb Moulding 7-1/4"

Door Jamb Moulding 7-1/4"

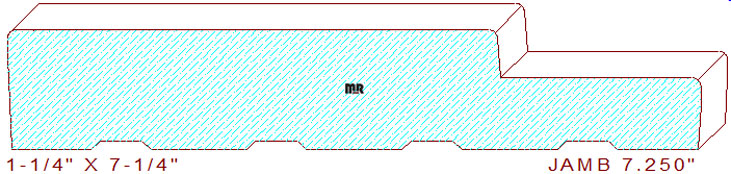

This single rabbeted door jamb 7-1/4" measures 7.250" wide by 1.250" thickness. The profile is comprised of a 5-1/8" wide horizontal line with two 3/32" eased edges, connected to a 2-1/8" wide by 1/2" deep rabbet with a 3/32" radius edge. Both side edges of the pattern have a 3/16" tall vertical line for the casing to seat on, then they taper inward three degrees. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

We're delighted you found a functional profile that interest you, please consider all the other things we can do for your precision woodworking company. Mirror Reflections offers hundreds of tooling supplies for your industrial moulder and knife grinding room. If you're just getting started in the industry, read some of our informational articles, they will help you with all the basics. One thing we have in common is our passion for excellence and our quest to be paramount craftsman for all our clients.

For knife quoting purposes use the calculator below, we have added only the important dimensions, determine the cutters you need. A brief detailed explanation on how to use the calculator is located here.

Width = 7.250" / Depth of Cut = .500" (top knives) & .093" (bottom cutters).

Thickness = 1.250" / Depth of Cut = .280" (right blades) & .280" (left knives).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
