Door Jamb Moulding 7-1/4" - 2

Door Jamb Moulding 7-1/4" - 2

Door Jamb Moulding 7-1/4" - 2

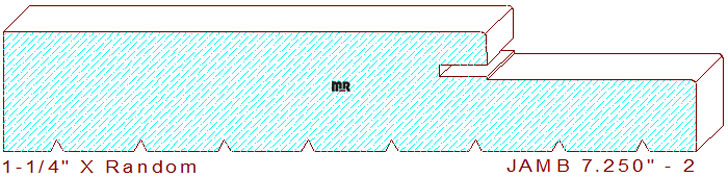

This exterior rabbeted door jamb 7-1/4" - 2 measures 7.250" wide by 1.250" thickness. The profile is comprised of a 5-1/16" wide horizontal line with a 1/16" radius edge, connected to a 2-3/16" wide by 1/2" deep rabbet with a 1/16" radius on the side edge. The saw kerf for the weather stripping is machined by either a universal moulder spindle, or on a table saw after the milling process. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

Try one of our 125% concentration ultimate CBN (cubic boron nitride) grinding wheels, finish grinding at 3000 rpm with a twenty-degree back clearance angle will create a superior micro edge on all your high-speed steel profile knives. Read this article or watch the videos to help better understand how to align a borazon wheel to axial constant position on a Weinig R960 profile grinder. During the machining process the knives will be capable of milling some of the finest quality architectural mouldings you have ever produced.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here.

Width = 7.250" / Depth of Cut = .687" (top knives) & .125" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
