Door Jamb Moulding 8" - 2

Door Jamb Moulding 8" - 2

Door Jamb Moulding 8" - 2

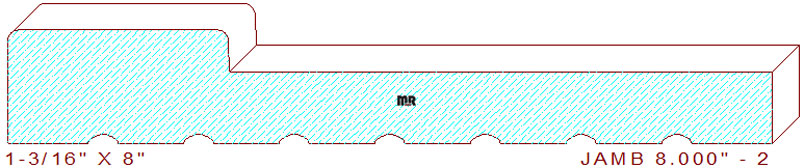

This Hefty Door Jamb Moulding 8" - 2 measures 8.000" wide by 1.187" thickness, with a .437" depth of cut on the top horizontal moulder cutters. Search our backout category for a suitable relief cut for this detail, we have a few options available for you to choose from.

The profile is comprised of a 2-5/16" wide raised fillet with 1/8" radius edges, connected to a 7/16" deep by 5-11/16" wide rabbet milled out of the side edge of the pattern.

Please read our commentary, Moulder Pressure Shoe – Custom Made, this helpful step by step article will help you mill this profile to perfection. Whether you own a Weinig, Wadkin, Leadermac, SCM, Diehl, or Kentwood moulder, our custom moulding knife designs will mill flawlessly on them all.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
