Door Jamb Moulding 8" - 3

Door Jamb Moulding 8" - 3

Door Jamb Moulding 8" - 3

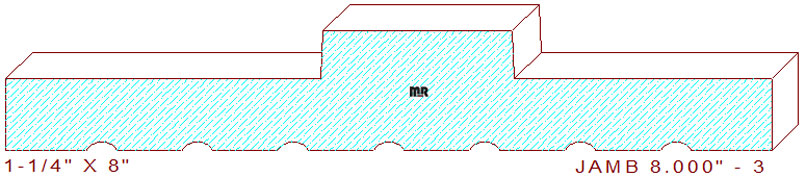

This Double Rabbeted Door Jamb 8" - 3 measures 8.000" wide by 1.250" thickness, with a .500" depth of cut on the top horizontal profile cutters. Search our backout category for a suitable relief cut for this detail; we have a few options available for you to select from.

The profile is comprised of a 2-1/32" wide raised fillet, connected to a 2-11/16" wide, by 1/2" deep rabbet on one side, and a 3-9/32" wide by 1/2" deep rabbet milled out of the opposite side of the pattern.

We invite you to search for other design ideas for your client's elegant home; we have over 15,000 alternative profile options for you to choose from, alter the search parameters to view. Our eminence derives from over thirty-five years of experience and superior functionality of all our custom patterns.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
