Door Jamb Moulding 8-1/4" - 3

Door Jamb Moulding 8-1/4" - 3

Door Jamb Moulding 8-1/4" - 3

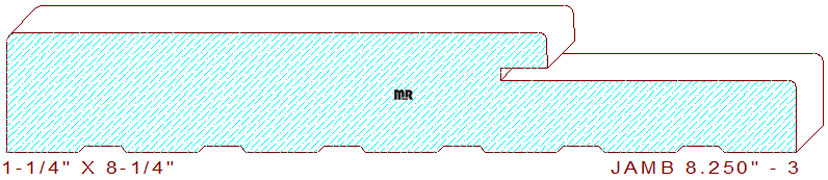

This rabbeted exterior door jamb moulding 8-1/4" - 3 measures 8.250" wide by 1-1/4" thickness. The functional profile is comprised of a 5-21/32" wide by 1/2" deep stepped line, attached to a 2-19/32" wide rabbeted area with 1/8" eased edges on all sharp corners. The weatherstrip groove is milled by either a universal moulder spindle, or on a table saw or hand held router after the machining process. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

Our purple colored ceramic blend grinding wheel hogging at 2000 rpm, with a twenty-five-degree back clearance angle will rough grind a set of high-speed steel cutters in a minimal amount of time. Review our article on the importance of having the profile grinder level, this commentary will insure prolonged use of your machinery while maintaining consistent perfection when grinding cutters.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 8.250" / Depth of Cut = .750" (top knives) & .062" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
