Door Jamb Moulding 8-5/8"

Door Jamb Moulding 8-5/8"

Door Jamb Moulding 8-5/8"

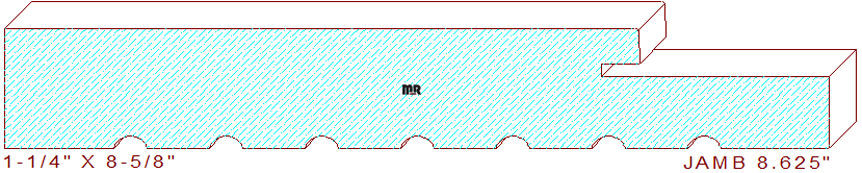

This exterior door jamb 8-5/8" measures 8.625" wide by 1.250" thickness. The profile is comprised of a 6-5/8" wide by 1/2" deep stepped lines attached to a 2" wide rabbeted area on the thin side of the jamb. The saw kerf for the weather stripping is machined by either a universal moulder spindle, or, on a table saw after the milling process. Browse our backout category for a suitable relief cut for this pattern, we have a few options to select from.

Read our commentary on custom made pressure shoes, this helpful step by step article will help you mill this profile to perfection. Whether you own a Weinig, Wadkin, Leadermac, SCM, Diehl or Kentwood moulder, our knife patterns will mill flawlessly on all of them.

For knife quoting purposes use the calculator below, we have added only the important dimensions. A brief detailed explanation on how to use the calculator is located here.

Width = 8.625" / Depth of Cut = .500" (top knives).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
