Door Jamb 8-5/8" - 10

Door Jamb 8-5/8" - 10

Door Jamb 8-5/8" - 10

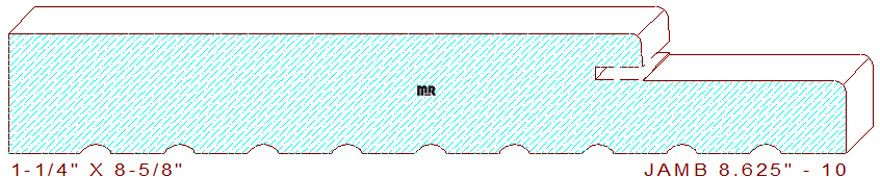

This 8-5/8" - 10 exterior door jamb measures 8.625" wide by 1.250" thickness. The profile comprises a 6-1/2" horizontal fillet with a 1/8" radius that transitions into 1/2" deep by 2-1/8" wide rabbet with a 1/8" radius edge. After the milling process, the dado for weatherstripping gets milled with a universal spindle or a table saw. This downloadable DXF file contains two high-precision CAD drawings to create knives for this specific detail, one for the entire width of the pattern and the other for milling just the detail-only portion of the design.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 8.625
Depth of Cut: 0.781
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$549.25
Not Needed
Total:
$549.25
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$586.75
Not Needed
Total:
$586.75
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$624.25
Not Needed
Total:
$624.25
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
