Door Jamb 3/4"

Door Jamb 3/4"

Door Jamb 3/4"

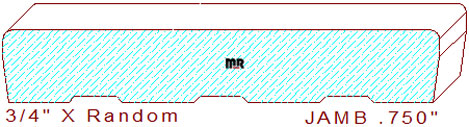

This 3/4" interior door jamb measures .750" in thickness, and widths are adjustable to any desired size within the machinery parameters. The most typical width sizes are 4-9/16" wide for a 2" x 4" frame with 1/2" sheetrock wall, 5-1/2" wide for a 2" x 4" frame with stucco or thick drywall, and 6-9/16" wide for a 2" x 6" frame, or block wall. The profile is comprised of a 3/32" round-over on top, connected to a 3/16" tall, straight flat line on the sides for the door/window casing to seat on during installation, the pattern tapers downward 5.601 degrees the remaining thickness of the design. We offer an alternative style jamb with a different radius on the edges for your review and consideration door jamb .750" - 7.

Explore our backout category for an appropriate relief cut for underneath this detail; we're confident you will find a suitable pattern to match your needs.

The present-day combined high-speed steel knives & template prices are listed below for quoting purposes.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.250
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.250
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$130.50
$87.50
(Template not needed)
Not Needed
Not Needed
Total:
$218.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.50
$94.50
(Template not needed)
Not Needed
Not Needed
Total:
$232.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.50
$101.50
(Template not needed)
Not Needed
Not Needed
Total:
$246.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
