Cabinet Door Stile/Rail 2-11/16" - 1
Cabinet Door Stile/Rail 2-11/16" - 1

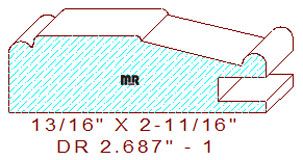

This mitered cabinet door stile/rail measures 2-11/16" - 1 measure 2.687" wide by .812" thickness. The profile comprising a recessed 1/4" wide half-round bead connected to a double radiused edge fillet that slopes downward to another 1/8" radius half-circle positioned above the dado for the panel. We have other matching profiles for your review and consideration, door rail 1.750" - 17, and door rail 4.000 - 2.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 2.687
Depth of Cut: 0.469
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$222.72
Not Needed
Total:
$222.72
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$236.47
Not Needed
Total:
$236.47
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$257.09
Not Needed
Total:
$257.09
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
