Cabinet Door Moulding 2-3/4" - 17

Cabinet Door Moulding 2-3/4" - 17

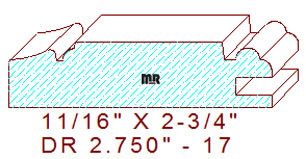

This cabinet door rail molding measures 2-3/4" wide by 11/16" thickness. The profile consists of a cyma reversa with attached quirk and quarter round bead on one side, a fillet in the middle, and a quirked half round bead with a 1/8" radius edge.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
