Cabinet Door Moulding 2-3/4" - 6

Cabinet Door Moulding 2-3/4" - 6

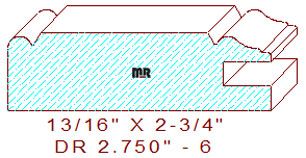

This Cabinet Door Moulding 2-3/4" - 6 measures 2.750" wide by .813" thickness. The profile is comprised of a 1-3/4" wide fillet in the center flanked by a chamfer and half-round bead on the outer edge and a bevel attached to a cyma reversa and stepped fillet on the inner edge directly above the dado for the door panel.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
