Cabinet Door Rail Moulding 2-7/8" - 15

Cabinet Door Rail Moulding 2-7/8" - 15

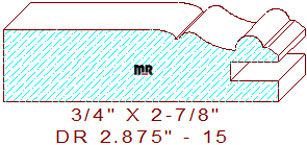

This colonial style cabinet door rail moulding 2-7/8" - 15 measures 2.875" wide by .750" thickness allowing the pattern to be milled from four quarter lumber. The stylish profile is composed of a 1-13/16" wide straight line with a two tangent radius elliptical shaped edge that transitions into a 1/32" wide sunk fillet, attached to a two tangent radius cyma reversa with a 9/32" wide half round bead, joined to a 1/16" wide horizontal line and a 9/64" wide splay face chamfer on the right side of the design.

Are you a moulding manufacturer? If so, please add your company to our millwork suppliers map, this valuable resource will help potential customers experience the craftsmanship of your creative woodworking shop. Did you know you can connect our substantial moulding catalog to your website? It's free, offer your clients profile designs they don’t even know exists.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 2.875" / Depth of Cut = .344" (top knives.)

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
