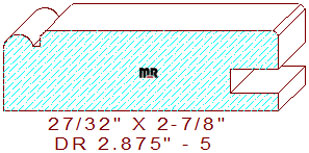

This Beaded Door Rail Moulding 2-7/8" - 5 measures 2.875" wide by .840" thickness, the profile is comprised of 5/32" radius half round circle which is recessed by .040" attached to a sunk fillet that transitions into a radiused edge chamfer positioned above the dado for the panel. The matching drawer front for this particular detail in named DR-2.375"-2, just alter the search parameters to find it.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
