Cabinet Door Moulding 2-15/16" - 10

Cabinet Door Moulding 2-15/16" - 10

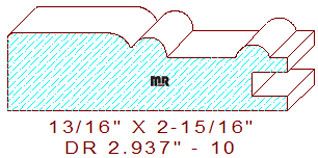

This splendid door rail molding measures 2-15/16" wide by 13/16" thickness, the profile is composed of a 1/16" radiused outer edge fillet with an attached 1/4" radius on the other side, it then transitions into two half-round circles that are divided by another fillet that measures 23/32" wide. The dado on the right side edge is generally milled with a carbide insert cutter head and is not included in the downloadable dxf file.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
