Cabinet Door Moulding 3"

Cabinet Door Moulding 3"

Cabinet Door Moulding 3"

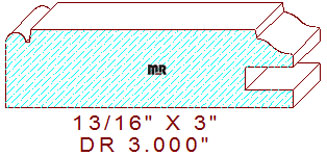

This distinctive cabinet door rail moulding 3" measures 3.000" wide by .812" thickness, permitting the detail to be milled out of four quarter lumber. The stylish profile is comprised of a 2-11/32" wide by 3/32" tall raised fillet in the center, attached to a two tangent radius cyma reversa/ogee on the right, above the dado for the panel, the opposite side of the design consists of a 1/16" wide sunk fillet connected to a recessed 13/64" wide half round circle. The lowering of the bead below the surface plane by 1/32" enables the moulding to be sanded without flattening the top of the half round bead during the finishing process.

We're delighted you found a beautiful profile that interest you, please review and consider this detail for the drawer front application, door rail 2.250" - 20. Mirror Reflections offers hundreds of tooling supplies for your industrial moulder and knife grinding room. If you're new to the industry, read some of our informational articles, they will help you get started with all the basics. One thing we have in common is our passion for excellence and our quest to be paramount craftsman for all our clients.

For knife quoting purposes click to open the calculator below, we have added only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .446" (top knives).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
