Cabinet Door Moulding 3" - 10

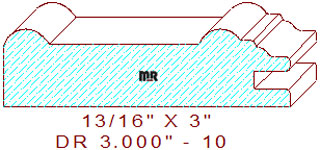

This cabinet door rail moulding 3" - 10 measures 3.000" wide by .812" thickness, allowing the pattern to be milled from four quarter lumber. The beaded profile is comprised of a 1-9/16" wide horizontal sunk fillet in the center flanked by a 15/64" radius half round circle on each side, connected to an ogee bordered by small horizontal line segments positioned at different elevations. We offer this detail without the half round bead on the left hand side, door rail 3.000" - 54 and a matching drawer front for your review and consideration We also offer the matching door rail of this pattern for your review and consideration, drawer front 1.750 - 32.

Try one of our 125% concentration ultimate CBN (cubic boron nitride) grinding wheels, finish grinding at 3000 rpm with a twenty-degree back clearance angle will create a superior micro edge on all your high-speed steel profile knives. Read this article or watch the videos to help better understand how to align a borazon wheel to axial constant position on a Weinig R960 profile grinder. During the machining process the knives will be capable of milling some of the finest quality architectural mouldings you have ever produced.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .466" (top knives).
