Cabinet Door Moulding 3" - 102

Cabinet Door Moulding 3" - 102

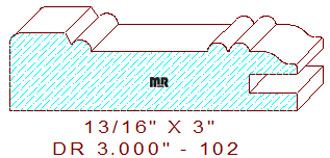

This door rail molding measures 3" width by 13/16" thickness, enabling four-quarter lumber for milling on a commercial-grade molder. The profile contains a slight ogee edge on the right flank to the left by two tiny half-round beads with a large center fillet and another small bead that angles upward to total thickness.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
