Cabinet Door Moulding 3" - 104

Cabinet Door Moulding 3" - 104

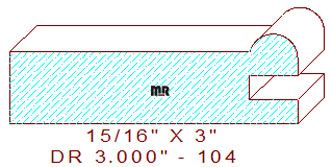

This Cabinet Door Moulding 3" - 104 measures 3.000" wide by 15/16" thickness. The profile contains a 1/2" wide half round bead attached to a 2-1/2" wide sunk horizontal fillet measuring 3/4" thickness on the thin edge of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
