Cabinet Door Moulding 3" - 13

Cabinet Door Moulding 3" - 13

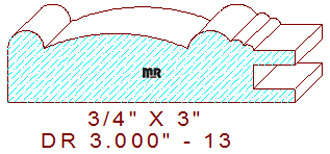

This Cabinet Door Rail Moulding 3" - 13 measures 3.000" wide by .750" thickness with a depth of cut of .343" on the top horizontal set of moulding knives. We also have a couple of matching drawer fronts for this detail, door rail 2.000" – 23, and door rail 2.500" - 27 for your review and consideration.

The beaded profile is comprised of a 1-7/8" radius arc in the center, connected to a 3/16" radius half round circle on the outside edge, the inside edge consists of a 1/4" radius half round circle, attached to two cascading 3/32" radius beads with a 7/16" wide horizontal fillet positioned above the dado for the panel.

We offer thousands of inspirational architectural mouldings that will shape the contour of every exquisite room in your beautiful home. Download all our free moulding knife dxf profiles, see how easy the services we provide can increase productivity and reduce production cost.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
