Cabinet Door Rail Moulding 3" - 15

Cabinet Door Rail Moulding 3" - 15

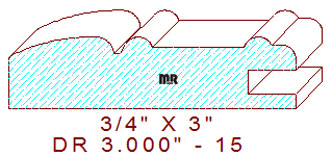

This Cabinet Door Stile & Rail Moulding 3" - 15 measures 3.000" wide by .750" thickness with a depth of cut of .403" on the top horizontal set of moulding knives. We also have a couple of matching drawer fronts that will compliment this detail, door rail 2.000" - 4 and door rail 2.250" - 42 for your review and consideration.

The creative profile is comprised of three tangent radius arcs on the outer edge of the detail, connected to two 5/32" radius half round circles separated by a 1/16" and a 61/64" wide sunk fillets, with a 5/32" radius edge positioned above the dado for the panel. The knife design includes the required draft angles to maintain the ability to sharpen the knives properly without modifying the detail while prolonging the milling time between sharpening.

Whether you own a Weinig, Wadkin, Leadermac, SCM, Diehl, or Kentwood moulder, our custom moulding knife designs will mill flawlessly on them all.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
