Cabinet Door Moulding 3" - 16

Cabinet Door Moulding 3" - 16

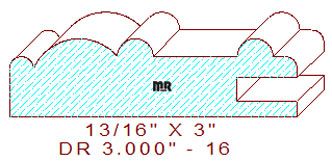

This lovely door rail molding measures 3" width by 13/16" thickness allowing the use of four-quarter lumber for machining on a commercial-grade molder. The profile contains a series of half-round circles divided by a 7/8" broad fillet and a radius arc; three of the four half rounds are positioned on the same level plane to assist you in machining during the assembly process.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
