Cabinet Door Moulding 3" - 19

Cabinet Door Moulding 3" - 19

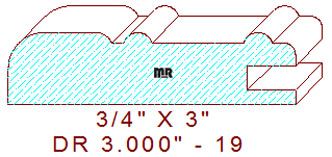

This Miter Cabinet Door Rail Moulding 3" - 19 measures 3.000" wide by .750" thickness. The profile is comprised of a 3/8" radius edge fillet that transitions into two sunken fillets that are divided by two 5/32" radius half round beads with a 1/8" radius edge fillet above the dado. The matching drawer front for this particular detail is Door Rail 2.000" - 1.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
