Cabinet Door Moulding 3" - 2

Cabinet Door Moulding 3" - 2

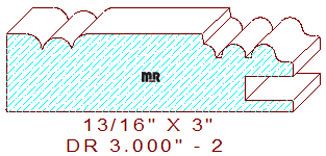

This Cabinet Door Moulding 3" - 2 measures 3.000" wide by .812" thickness. The profile is comprised of a 1-3/8" wide center fillet flanked by a single recessed bead on one side and two half round and one quarter round beads that are divided by two small fillets on the opposite side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
