Cabinet Door Moulding 3" - 23

Cabinet Door Moulding 3" - 23

Cabinet Door Moulding 3" - 23

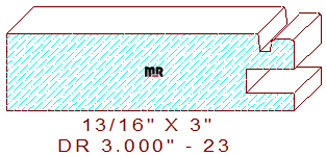

This contemporary cabinet door rail moulding 3" - 23 measures 3.000" wide by .812" thickness, enabling the profile to be cut from four quarter lumber. The modest profile is composed of a 2-5/8" wide flat line in the center, connected to a 1/8" wide by 3/16" deep sunk fillet, attached to a 1/4" wide by 1/8" tall raised fillet with two 3/64" eased edges on the right side above the dado for the panel. We offer the matching drawer front for this design for you review and consideration, door rail 1.750" - 23.

Be sure to check out a few other profile designs for different rooms in your beautifully stylish home, with over 15,000 patterns in our search by size moulding catalog there is something for everyone’s creative architectural style. Utilize our manufacturers map listed by states to help you locate a mill in your area to produce this creative pattern.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .291" (top knives).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
