Cabinet Door Moulding 3" - 30

Cabinet Door Moulding 3" - 30

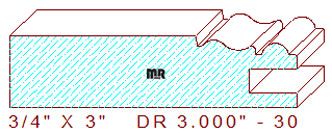

This Cabinet Door Rail Moulding 3" - 30 measures 3.000" wide by .750" thickness, the profile portion is comprised of a cyma reversa flanked by 1/16" wide sunk fillets with a half round bead and eased edge fillet on the thin side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
