Cabinet Door Moulding 3" - 4

Cabinet Door Moulding 3" - 4

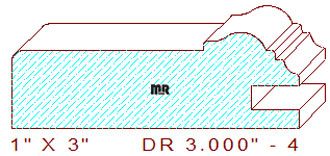

This Cabinet Door Moulding 3" - 4 measures 3" wide by 1" thickness. The profile is composed of a 2" wide radius edge fillet at 13/16" thickness, the elevation changes by way of a backward cyma reversa with attached stepped fillets and a cove on the side positioned just above the dado where the panel is inserted.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
