Cabinet Door Moulding 3" - 42

Cabinet Door Moulding 3" - 42

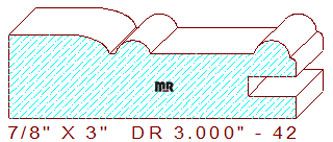

This door rail moulding measures 3" wide by 7/8" thickness; the profile consists of a square outer edge; this will be milled after assembly with one of our numerous edge details. The remaining profile is composed of a radius arc that transitions into two half-round beads divided by a slightly over 1-1/16" wide fillet. The inner edge of the design retains a 1/16" radius for look and finishing purposes.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
