Door Rail Moulding 3" - 5

Door Rail Moulding 3" - 5

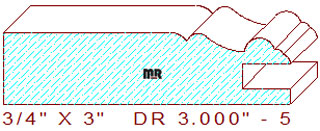

This Mitered Door Rail Moulding 3" - 5 measures 3.000" wide by .750" thickness with a depth of cut of .414" on the top horizontal set of moulding knives.

The elegant profile is comprised of a 1-59/64" wide horizontal fillet with a 7/32" radius edge, joined to a cyma reversa that transitions into a 5/16" wide half round circle, attached to two cascading quarter round beads located above the dado for the panel.

Please review some of our helpful moulder and knife grinding articles, they will assist you in many aspects of moulder set up and knife grinding procedures. These commentaries were written to help you be more familiar with the machinery, while making your job a little easier in the process.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
