Cabinet Door Moulding 3" - 53

Cabinet Door Moulding 3" - 53

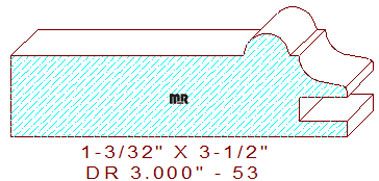

This Mitred Cabinet Door Moulding 3" - 53 measures 3.000" wide by 1.084" thickness,the profile is comprised of a 9/32" radius cavetto/cove positioned above the dado for the panel connected to a 3/32" wide horizontal fillet that transitions into a half round circle with a 1-7/32" wide sunk fillet attached to the other side of the bead. We also have a matching drawer front profile for this particular pattern at 2.000" wide named DR 2.000" - 28.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
