Cabinet Door Moulding 3" - 6

Cabinet Door Moulding 3" - 6

Cabinet Door Moulding 3" - 6

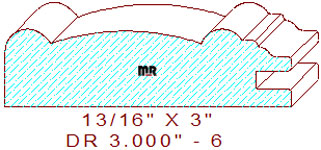

This cabinet door rail moulding 3" - 6 measures 3.000" wide by .812" thickness, allowing the pattern to be milled from four quarter lumber. The attractive profile is comprised of a recessed 1-9/16" wide semicircular arc in the center, flanked by two 15/64" radius half round beads with a 5/32" wide by 1/16" deep step, joined to a two tangent radius ogee and a small horizontal line segment with a 3/64" eased edge on the right side of the pattern. We offer a many stylish cabinet drawer fronts that will complement this lovely rail design, here are just a couple for your review and consideration, drawer front 1.750" - 1 and door rail 1.750" - 24.

Looking for that special moulding to enhance the architectural style of your current project, send us a sketch, custom design is our specialty. Experience the beauty we can create together from your outlined ideas and our vast knowledge of the woodworking industry.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .466" (top knives).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
