Cabinet Door Moulding 3" - 62

Cabinet Door Moulding 3" - 62

Cabinet Door Moulding 3" - 62

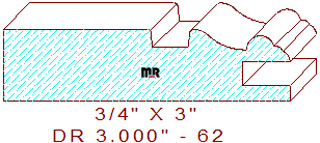

This elegant cabinet door rail moulding 3" - 62 measures three inches wide by .750" thickness, allowing the detail to be milled from four-quarter lumber. The good-looking profile is composed of a 1-9/16" wide line segment with a 3/64" eased inner edge on the left. The outside edge was intentionally left square to utilize the radius edge of your choice, connected to a 3/8" wide by 3/16" deep sunk fillet for installing a piece of rope moulding, connected to a small elevation changing two tangent radius cyma reversa that joins to a 9/32" wide half round bead and two cascading quarter round semicircles on the right side of the pattern. We offer a matching drawer front for this detail for your review and consideration, door rail 1-3/4" - 15.

Utilize any of our patterns to create a stylish moulding catalog for your millwork company, or, simply connect our profile catalog to your website, this will enable you to offer more eye-catching profiles to your clients while reducing production cost spent on molding design. Let us help you transform that beautiful house being constructed into an elegant home.

For knife quoting purposes, click to open the calculator below; we have added only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .414" (top knives).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
