Cabinet Door Moulding 3" - 70

Cabinet Door Moulding 3" - 70

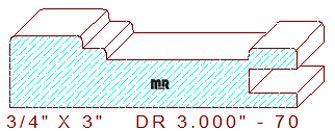

This Cabinet Door Moulding 3" - 70 measures 3.000" wide by .750" thickness. The profile is comprised of 1/8" deep stepped and sunken fillets with a 1/16" radius placed on all sharp edges to aid in the finishing process.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
